9.5 kVA

Gas

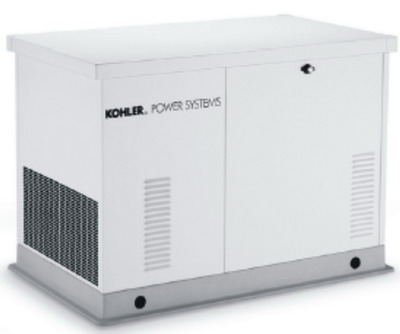

12RES

14 kVA

Gas

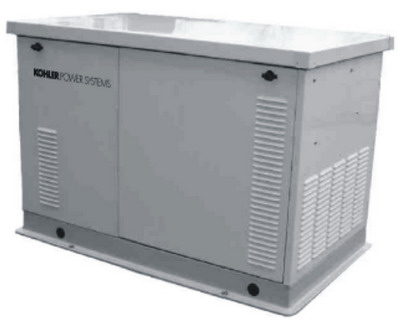

17RES

The Kohler Advantage

-The Smart Choice
Known for its reliability, the Kohler 12 kW generator set was named a “Best Buy” as well as the highest-rated generator in a leading consumer magazine in October, 2006

- Powerful
Exclusive Powerboos technology allows the Kohler 12 kW generator to start and run a typical 4 ton
(48,000 BTU) central air conditioner, while still running other home appliances and electronics *

- Cleaner Power for Sensitive Electronics
Protects sophisticated electronics with clean, stable power that exceeds strict utility requirements and IEEE standards for total harmonic distortion (THD)

- Faster Response
Kohler generator sets restore power in as little as 10 seconds

- Quiet
Quiet operation: 65 dB(A) at 7 m maintains neighborhood solitude

Standard Features

- ADC-RES Advanced Digital Control
- Designed for today’s most sophisticated electronics
- Electronic speed control responds quickly to varying household demand
- Digital voltage regulation protects your sensitive electronics from harmonic distortion and unstable power
quality
- LED display shows system status and setup information

Engine Features
- Kohler Command PRO OHV engine with hydraulic valve lifters for reliable performance without routine
valve adjustment or lengthy break-in requirements
- Digital Spark Advance Ignition (DSAI) optimizes engine performance for natural gas and LP vapor fuels (12RES only)
- Simple field conversion between natural gas and LP vapor fuels while maintaining emission certification
- Designed for Easy Installation
- Polymer base eliminates the need for a concrete mounting pad, reducing installation time and cost
- Fuel and electrical connections through the enclosure wall eliminate the need for stub-ups through the bottom
- Load connection terminal block allows easy field wiring
- Designed for outdoor installation only

Alternator Features
- Compliance with NEMA, IEEE, and ANSI standards for temperature rise
- Self-ventilated and dripproof construction
- Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
- Superior voltage waveform and minimum harmonic distortion from skewed alternator construction
- Digital voltage regulator with ±1.5% no-load to full-load RMS regulation
- Rotating-field alternator with static exciter for excellent load response
- Skewed generator construction produces a smooth AC waveform
